Sewer pipe line repair in San Diego: deciding between lining, bursting and excavation

Two different pipes fail under a San Diego house

Most of the housing stock in San Diego went up between the 1940s and the 1970s, and those houses carry waste through two separate pipe systems that age in different ways. Beneath the slab, cast iron drain lines run from each bathroom and the kitchen to the point where the building drain leaves the foundation. Cast iron corrodes from the inside out, and because the flow rides along the bottom of the pipe, the bottom thins first and eventually opens into a channel while the crown of the pipe still looks intact on camera. Outside the foundation, the lateral to the main is usually vitrified clay laid in short jointed sections. Clay does not rust, but every joint is a path for roots and a hinge that moves when the soil swells after winter rain and shrinks through the dry season.

Which system is failing changes everything about the repair. An under-slab cast iron problem is a question of lining through the house or cutting the floor. A clay lateral problem is a question of lining, bursting or digging in the yard and possibly in the public right-of-way.

Symptoms that point to one system or the other

A single slow drain is almost always a local clog. When a toilet gurgles while the washing machine empties, or the lowest fixture in the house backs up, the obstruction is downstream of both, which places it in the building drain or the lateral. Backups that return every few months in a yard with mature trees point to roots in a clay joint. A damp or warm patch on the slab floor, or a sewage odor indoors with nothing visible outside, points to the cast iron under the house. These clues do not replace a camera inspection; they only tell the technician where to send it first.

Line, burst or dig: how the choice gets made

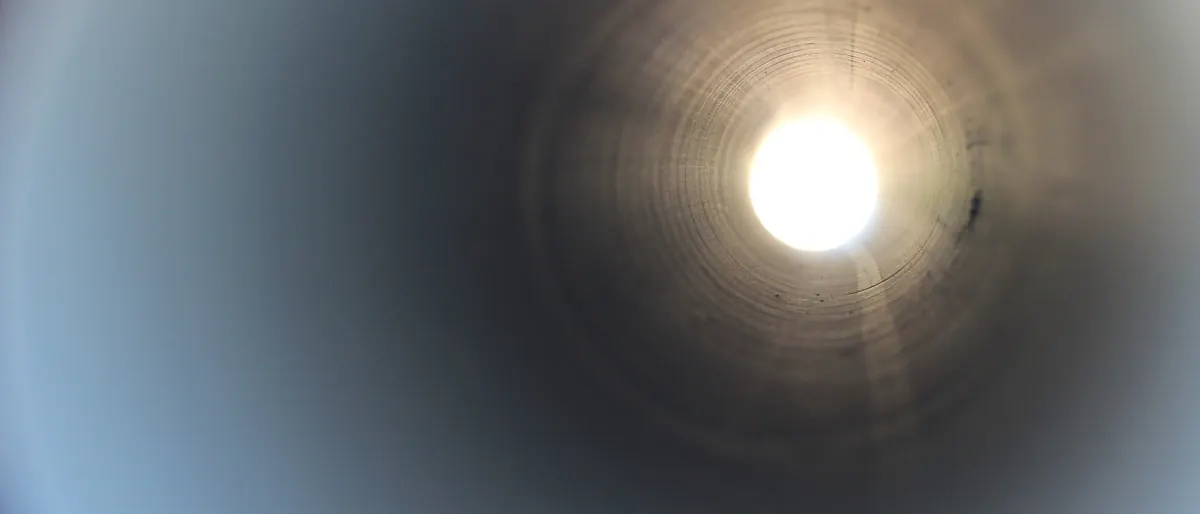

Cured-in-place lining suits a pipe that is still round enough to accept a liner and has no long collapsed runs. It handles root intrusion, cracks, separated joints and channeled cast iron, and a typical residential lateral in San Diego County is lined in a single working day. Pipe bursting suits a lateral that is undersized, badly offset or crushed over a distance, as long as there is room for an entry pit and an exit pit. A sectional point repair suits a line that is sound apart from one bad joint. Open excavation remains the answer when a section has fully collapsed, when the pipe has lost grade and holds standing water, or when the run sits where a liner cannot be pulled.

In San Diego the decision is also shaped by what sits on top of the pipe. A lateral under a stamped-concrete driveway, a pool deck or a mature pepper tree pushes the choice toward lining even when bursting would be a little simpler, because the restoration cost of digging dwarfs the difference between methods.

What the video and the written report should give you

You should receive the full recording, not a clip, with a distance counter visible so each defect can be located from the cleanout. The report should name the pipe material at each change, the diameter, the depth where it was located from the surface, every root mass, crack, offset and belly with its footage, and the condition of the connection at the main. It should then state the recommended method, the reason the alternatives were ruled out, the number of days, the hours the drains will be unusable, and the warranty in writing. A quote for a San Diego lateral without that recording is a guess.

Permits, lateral ordinances and selling a house in San Diego

Lateral repair on private property requires a plumbing permit from the city, and any work in the sidewalk, parkway or street requires a right-of-way permit from the agency that controls it. Some cities in Southern California have adopted sewer lateral ordinances that require an inspection, and sometimes a repair, when a property changes hands. If you are in escrow, ask the inspector to produce the recording in the format the city accepts so it does not have to be repeated. TSR Trenchless, Inc. pulls the permits, schedules the inspections and closes them out.

Getting a crew to the property

Details of coverage, scheduling and what the first visit involves are on the TSR Trenchless, Inc. service page for San Diego. The contractor's qualifications and installer record can be checked through the verified CIPP installer profile for TSR Trenchless, Inc., and the standards behind that listing are explained on the CIPP reference site that checks installer qualifications. If the drains are backing up now, call (858) 212-0070 and a technician will be dispatched to your San Diego address. Estimates are free. Call now.
